Evvr new energy multi-core charging / pile cable (national standard)


◆ shielding: no

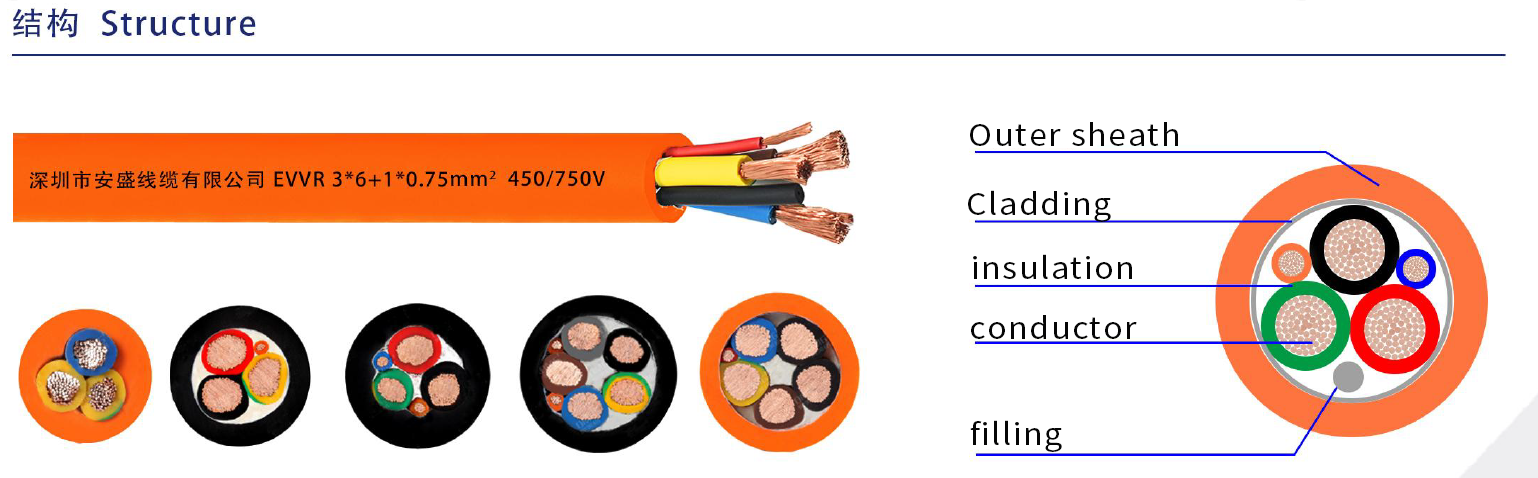

◆ Conductor: multiple grade 4N anaerobic copper stranded, the structure refer to the data sheet

◆ Stranded: bonded strand salty build ◆ core number: 3~7 core ◆ outer quilt: special elastomer TPE ◆ winding: flame retardant belt coating

◆ Insulation: special elastomer TPE ◆ Color: orange, black ◆ Operating temperature: -40~ + 125℃◆ Rated voltage: 450 / 750V ◆ Bending radius: 5 D

◆ Flame-retardant performance: VW-1

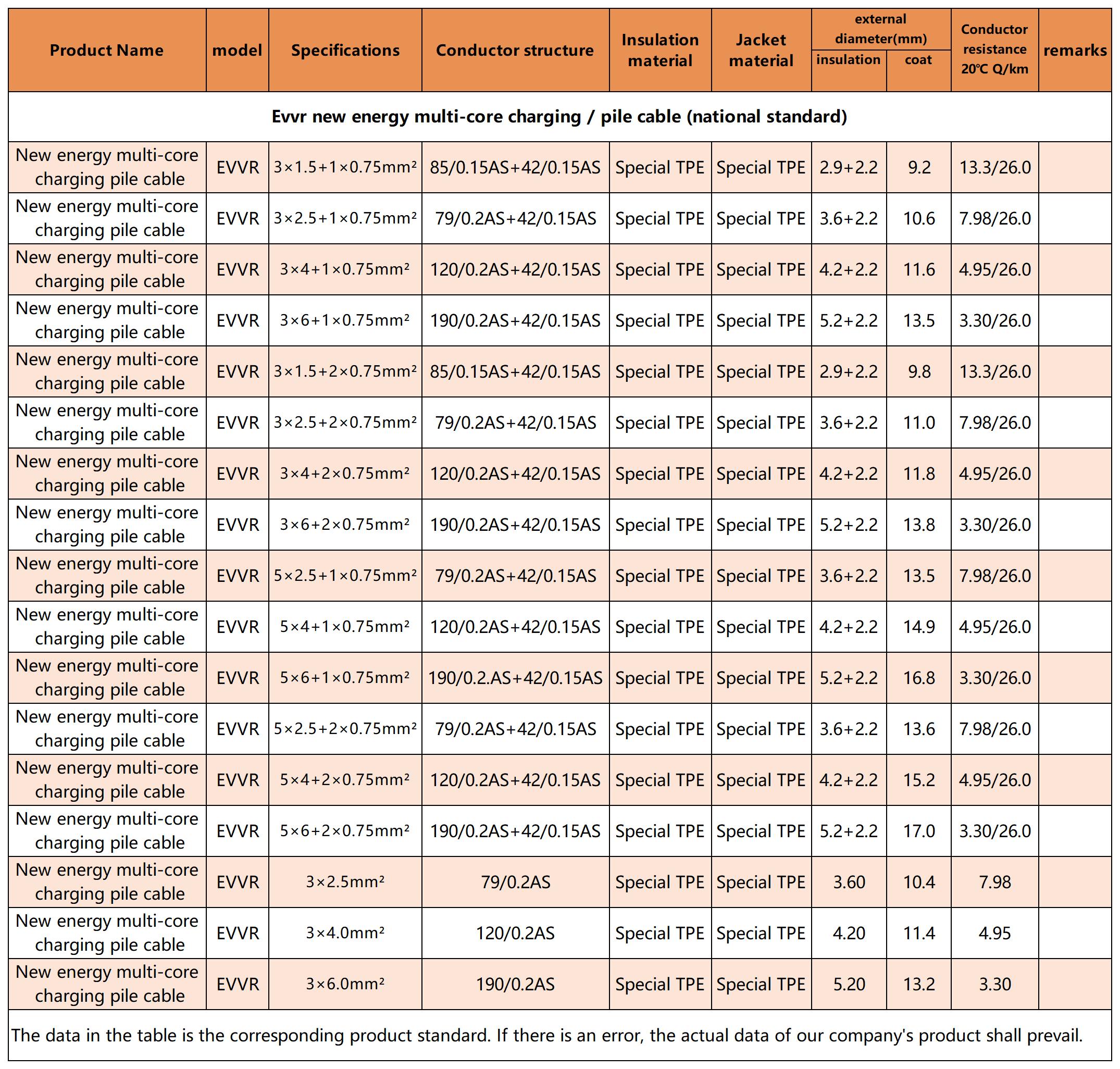

◆ Reference standard: Europe: EN50620 / IEC62893; United States: UL 62; China: GB / T33594 ◆ Product characteristics: halogen free, environmental protection, oil resistance, corrosion resistance, wear resistance, cold resistance, high temperature resistance, tensile resistance and other characteristics ◆ Application: suitable for telecommunications equipment, electrical equipment, new energy vehicles, charging pile and other fields of technical parameters (for reference only) Construction
